WINDER3

WINDER3 slitter is the most advanced slitter in compact segment.

more
AVANCER2

Maximum slitting efficiency, advanced automatic functions.

more
LANGER4

Multipurpose rewinder designed for Work Flow, 100% inspection,
reinspection of pharma labels [200% inspection].

more
CATER-A

Core cutting has never been so easy and effective.

more

SLITTER-REWINDERS for foil, paper, non-woven fabric and other materials wound from roll to roll

We design and build slitter-rewinders in versions from entry level to high end. In addition, we can equip our machines with a perforating module, a laser cutting station, a digital printing module, an inspection camera and a Work Flow module for print inspection based on a report generated by the printing machine. Our machines are built according to the highest technical standards and can additionally be equipped with solutions compliant with the principles of Industry 4.0 and the Internet of Things (IoT).

  • WINDER3

    WINDER3

    Technical data

    Width of material: 1000/1300/1600/1850mm (39.4"/51.2"/63"/72.8")
    Unwind diameter: 1000mm (39.4")
    Rewind diameter: 610/800mm (24"/31.5")

    Available equipment
    • Compact construction
    • Movable splicing table placed on unwind section
    • Automatic setting of rotary knives or razor blades
    More
  • WINDER2

    WINDER2

    Technical data

    Width of material: 1000/1300/1600/1850mm (39.4"/51.2"/63"/72.8")
    Unwind diameter: 1000mm (39.4")
    Rewind diameter: 610/800mm (24"/31.5")

    Available equipment
    • Compact construction
    • Movable splicing table placed on unwind section
    • Automatic setting of rotary knives or razor blades
    More
  • WINDER2C

    WINDER2C

    Technical data

    Width of material: 1000/1300mm (39.4"/51.2")
    Unwind diameter: 1000mm (39.4")
    Rewind diameter: 610/800mm (24"/31.5")

    Available equipment
    • Compact construction
    • Supported shaftless unwind
    • Eco-friendly built, incl. reduction of overall energy consumption
    More
  • MASTER3

    MASTER3

    Technical data

    Width of material: 1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
    Unwind diameter: 1100/1300/1500mm (43.3"/51.2"/59.1")
    Rewind diameter: 600/800/1000mm (23.6"/31.5"/39.4")

    Available equipment
    • Duplex rewind with separate unwind station
    • Highly efficient energy saving solutions
    • Data management solutions
    More
  • MASTER2

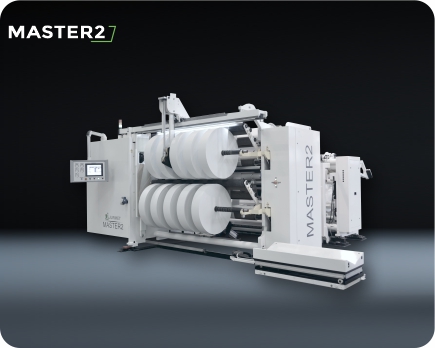

    MASTER2

    Technical data

    Width of material: 1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
    Unwind diameter: 1100/1300/1500mm (43.3"/51.2"/59.1")
    Rewind diameter: 610/800mm (24"/31.5")

    Available equipment
    • Separate unwind station with top run of material
    • Shaftless unwind for 3” and 6” including a remote control
    • Pneumatic splicing table to join the material behind the unwind station
    More
  • MASTER

    MASTER

    Technical data

    Width of material: 1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
    Unwind diameter: 1100/1300/1500mm (43.3"/51.2"/59.1")
    Rewind diameter: 610/800/1000mm (24"/31.5"/39.4")

    Available equipment
    • Separate unwind station with down run of material
    • Shaftless unwind for 3” and 6” including a remote control
    • Pneumatic splicing table to join the material behind the unwind station
    More
  • AVANCER2

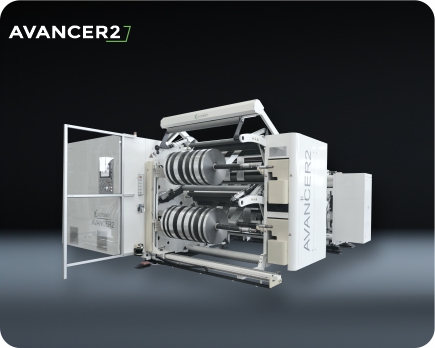

    AVANCER2

    Technical data

    Width of material: 1000/1300/1600/1800mm (39.4"/51.2"/63"/70.7")
    Unwind diameter: 1100/1300/1500mm (43.3"/51.2"/59.1")
    Rewind diameter: 600mm (23.6")

    Available equipment
    • Automatic double turret slitter
    • Separate unwind station
    • Pneumatic splicing table to join the material behind unwind station
    More
  • AVANCER

    AVANCER

    Technical data

    Width of material: 1000/1300/1600/1800mm (39.4"/51.2"/63"/70.7")
    Unwind diameter: 1000mm (39.4")
    Rewind diameter: 600mm (23.6")

    Available equipment
    • Automatic double turret slitter
    • Shaftless unwind for 3” and 6” including a remote control
    • Compact construction
    More
  • KRAFTER2

    KRAFTER2

    Technical data

    Width of material: paper 1600/2000/2200/2500mm (63"/78.7"/86.6"/98.4")
    Unwind diameter: 1300/1500mm (51.2"/59.1")
    Rewind diameter: 1000/1200mm (39.4/47.2")

    Available equipment
    • Separate unwind with down run of material
    • Shaftless unwind for 3” and 6” ID cores including a remote control (or an air shaft)
    • Hydraulic lifting of parent roll
    More
  • KRAFTER

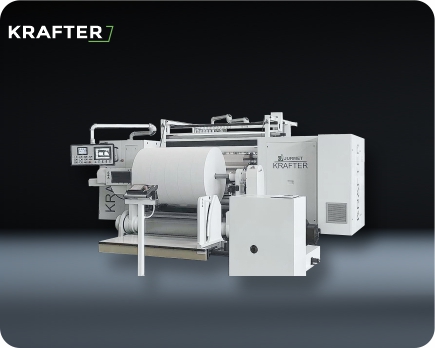

    KRAFTER

    Technical data

    Width of material: paper 1000/1450/1600mm (39.4"/57.1"/63")
    Unwind diameter: 1300/1500mm (51.2"/59.1")
    Rewind diameter: 1300mm (51.2")

    Available equipment
    • Separate unwind with down run of material
    • Shaftless unwind for 3” and 6” ID cores including a remote control (or an air shaft)
    • Hydraulic lifting of parent roll
    More
  • WINDER-d

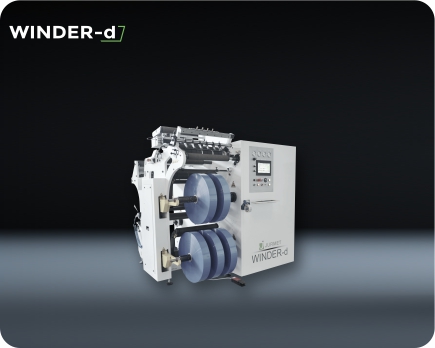

    WINDER-d

    Technical data

    Width of material: 600/800mm (23.6"/31.5")
    Unwind diameter: 800mm (31.5")
    Rewind diameter: 600mm (23.6")

    Available equipment
    • Compact construction
    • Shaftless unwind for 3” and 6” including a remote control
    • Hydraulic lifting of parent roll (or pneumatic)
    More
