CATER-S

Semi-automatic core cutter CATER-S is designed to cut cardboard cores into pieces of various lengths. This simple to use model guarantees dust free, efficient core cutting.

  • 2000-3000mm (78.7"-118.1")
    Max. parent core length
  • 1" - 10"
    Range of core inside diameter
  • 10mm (0.4")
    Min. slit length
  • 18mm (0.6")
    Max. wall thickness

CATER-S

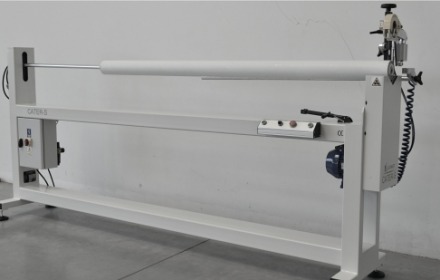

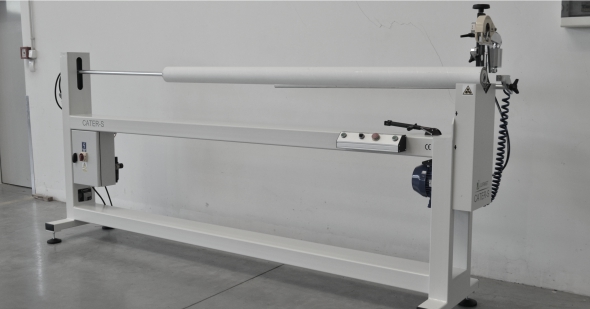

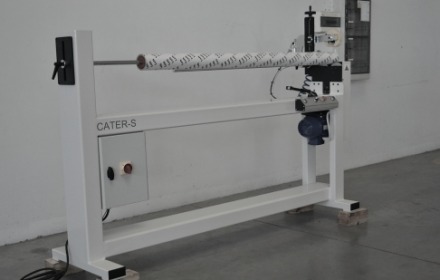

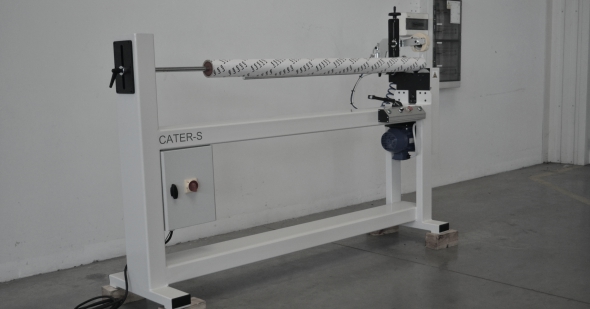

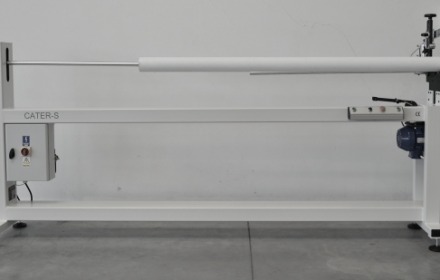

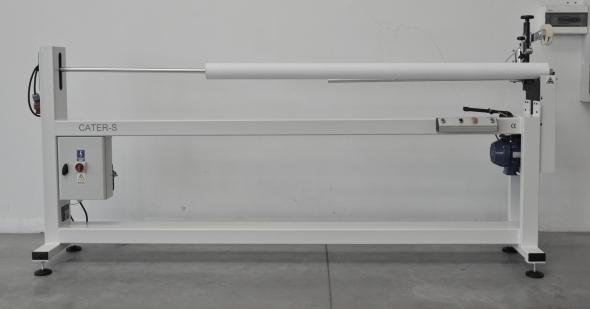

CATER-S - semi-automatic core cutter

The semi-automatic core cutter CATER-S is designed to cut cardboard cores into pieces of various lengths. This simple to use model guarantees dust free, efficient core cutting. The slitting section is designed so as it is not necessary to use manual force during slitting process because after pressing proper buttons the arm with a knife moves down and the knife cuts a core.

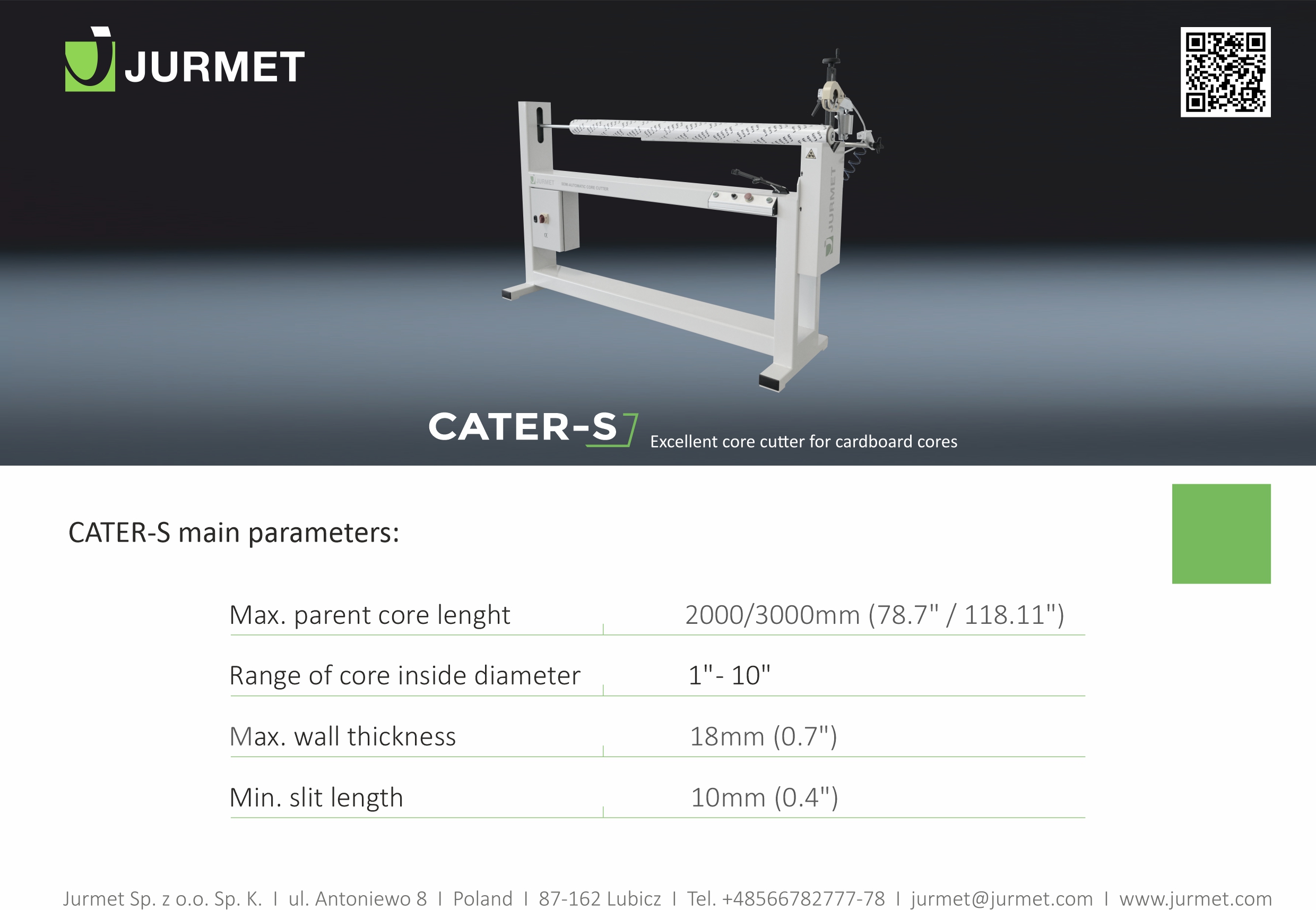

TECHNICAL DATA

SEMI-AUTOMATIC CORE CUTTER

Max. parent core length
2000/2540/3000mm (78.7"/100"/118.1")
Range of core inside diameter
1"-10"
Max. wall thickness
18mm (0.6")
Min. slit length
10mm (0.4")
Electric supply
motor 400 VAC x 3 phases
Air pressure
6 bar
