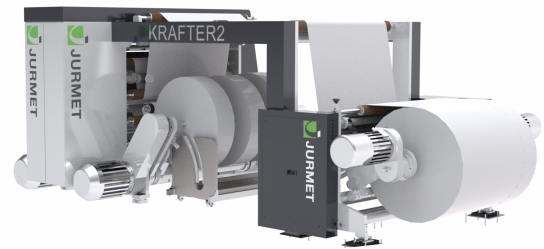

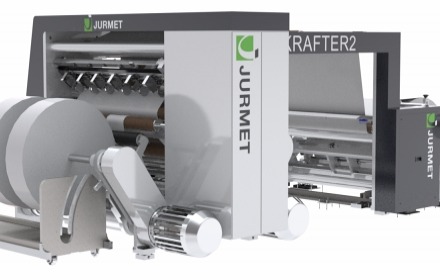

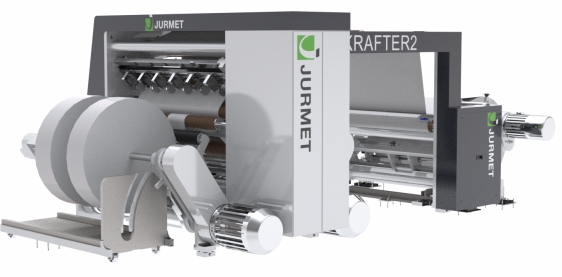

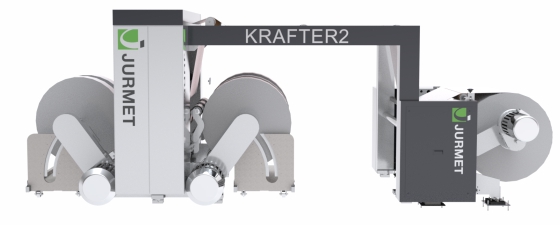

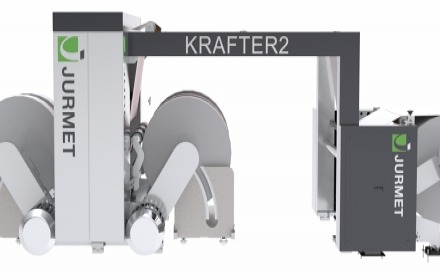

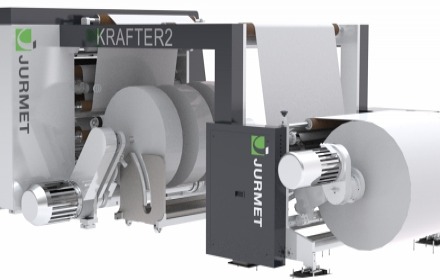

KRAFTER2

The KRAFTER2 slitter is designed to slit and rewind paper and non woven “offline”. The slid construction of the KRAFTER2 slitter is adapted to slit heavy paper rolls and non woven rolls with high diameters.

  • 1000/2500mm
    Web width
  • 1300/1500mm
    Unwind roll diameter
  • 1000mm
    Max. rewind diameter
  • up to 1000m/min.
    Speed

KRAFTER2

KRAFTER2 - monoshaft slitter for paper

The KRAFTER2 slitter preserves the same job parameters independently of the speed. Separate motors on unwind and rewind, precision tension control and solid construction allow stable and break free job. Whereas mechanic wear out is reduced to the minimum thanks to appealling high class mechanical parts.

TECHNICAL DATA

Width of material
1000/1300/1600mm
Unwind diameter
1300/1500mm
Rewind diameter
1200mm
Max. mechanical speed
up to 1000m/min.
Weight of parent roll
2500 kg
Min. slitting width
80mm
Core ID
3”,  6” (other diameters on request)
Converted material
foil (PE, PP, PA, PET and others), self-adhesive paper for labels, coated paper for the production of paper cups and other technical materials requiring winding of large diameters
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials
