WINDER-d

More and more converters of flexible materials are looking for economical solutions for their slitting and rewinding needs. For this reason JURMET has launched slitter WINDER-d.

  • 600/800mm (23.6"/31.5")
    Web width
  • 800mm (31.5")
    Unwind roll diameter
  • 610mm (24")
    Max. rewind diameter
  • 500m/min. (1640 ft/min.)
    Speed

WINDER-d

WINDER-d - mid-web slitter

More and more converters of flexible materials are looking for economical solutions for their slitting and rewinding needs. Due to this reason JURMET company has launched the slitter WINDER-d. This model fits most of solutions applied in our model WINDER-d. It is designed to slit various packaging materials, which are manufactured in narrow-web and mid-web flexo houses.

TECHNICAL DATA

Width of material
600/800mm (23.6"/31.5")
Unwind diameter
800mm (31.5")
Rewind diameter
610mm (24")
Max. mechanical speed
500m/min. (1640 ft/min.)
Weight of parent roll
800 kg (1764 lbs)
Min. slitting width
25mm/1" (50mm/2" as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foil (PE,PP,PA,PET and other),metalised foil, laminates, shrink film, label stock film, paper ,HSF film, aluminium, para transmission film
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials

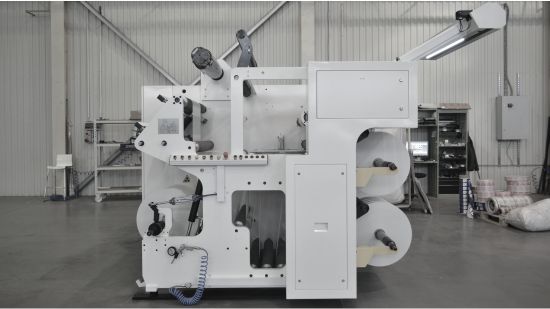

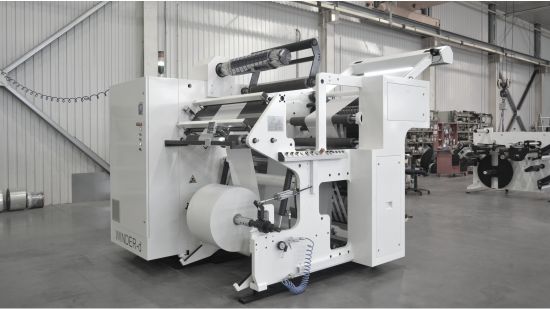

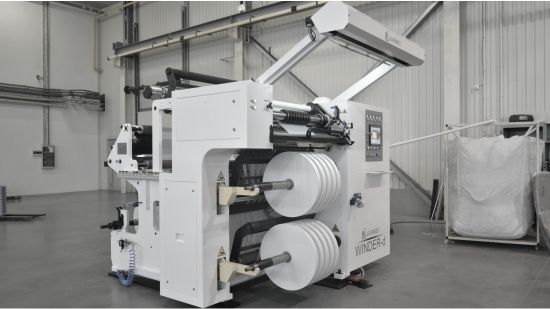

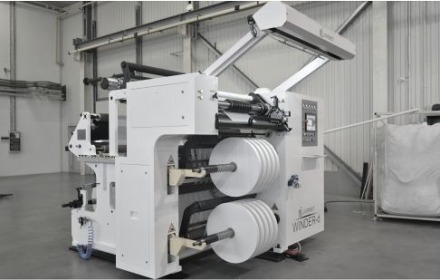

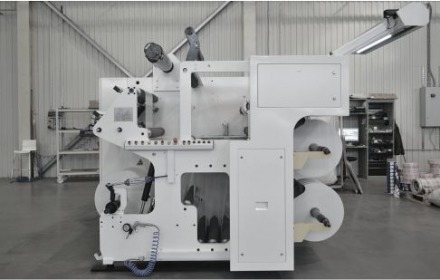

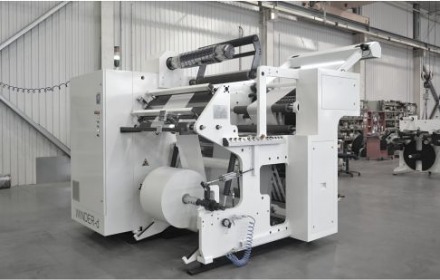

Gallery
