MASTER3

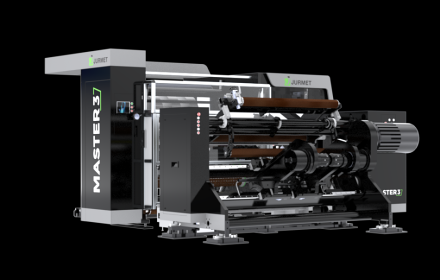

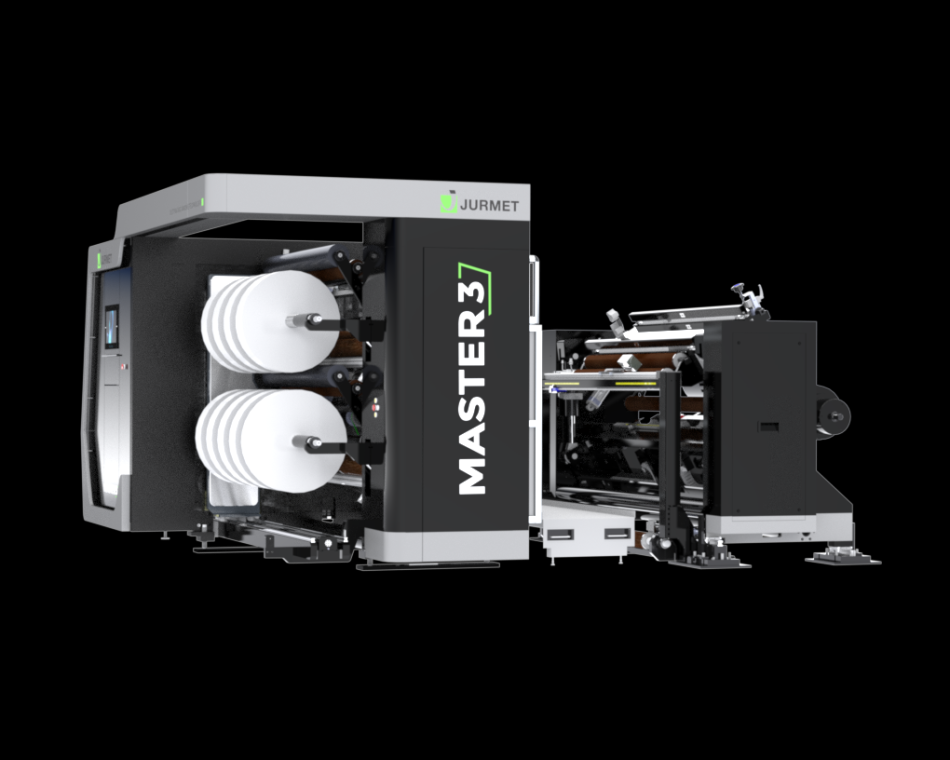

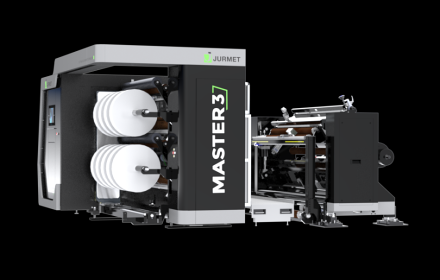

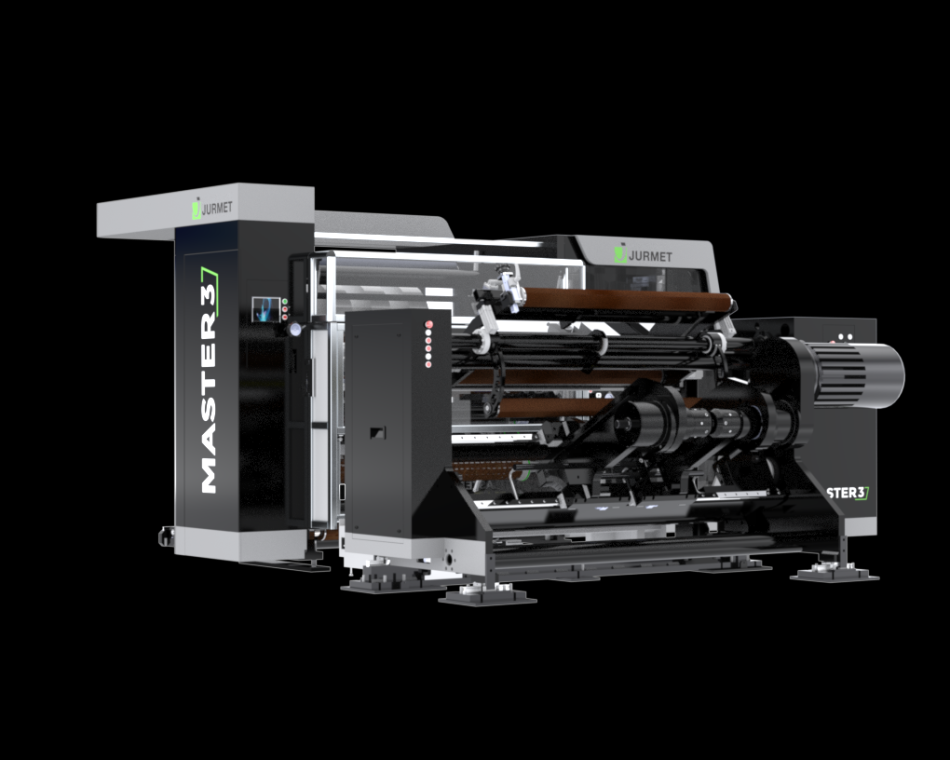

MASTER3 - duplex slitter with separate unwinder
MASTER3 slitter allows to slit efficiently various types of flexible materials. The precise tension control ensures perfect control over the slitting process which in combination with automatic solutions such as automatic knife setting, laser beam setting, web control or cores loading increases considerably the efficiency of slitting. Moreover, the energy saving solutions ensure constant saving over the years and reduce carbon footprint.
The design of the machine allows to incorporate external devices such as a laser device, a punching unit, inspection solutions or an ink jet station which elevates the features of the machine.
This universal model can be supplied in entry level version or in a fully automated one.
TECHNICAL DATA
Width of material
|
1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
|
Unwind diameter
|
1100/1300/1500mm (43.3"/51.2"/59.1")
|
Rewind diameter
|
610/800/1000mm (24"/31.5"/39.4")
|
Max. mechanical speed
|
800m/min. (2625 ft/min.)
|
Weight of parent roll
|
max. 2500 kg (5512 lb)
|
Min. slitting width
|
25mm/1" (50mm/2" as standard)
|
Core ID
|
70mm, 3”, 120mm, 150mm, 6”
|
Converted material
|
printed / unprinted foils (PE,PP,PA,PS,PET and other), paper, metalised films, laminates, labelstock films, alu films, non-woven.
|
Application
|
packaging for food industry, flexo printing houses, health care materials and pharma materials
|
